Europe Standard 3 Horse Loading Trailer with CE Customized Horse Floats Camper Trailer with Living Quarter

High-concerned chemical: None
Origin: Mainland China
Item Type: Trailer
Material: Stainless Steel
Use: Other Trailers
Max Payload: 2600KG
Size: 5925*2280*2590 mm
Place of Origin: Henan, China
Brand Name: REALLY
Name: 3 horse carriage trailer horse trailer door horse trailer
Usage: For horse trailer horse trailer ramp
Color: customized used 3 horse carriage trailer horse trailer
Rated horses: 3
tyre: 195R15C with alloy rims
Suspension: 4 wheels electrical brakesg
axle: 50*50mm solid axle
Movement: towed by car
Item: 3 horse carriage trailer horse trailer door horse trailer
whats app: 008617719817302

2021 Europe Standard 3 Horse Loading Trailer with CE Customized Horse Floats Camper Trailer with Living Quarter

Detailed Images

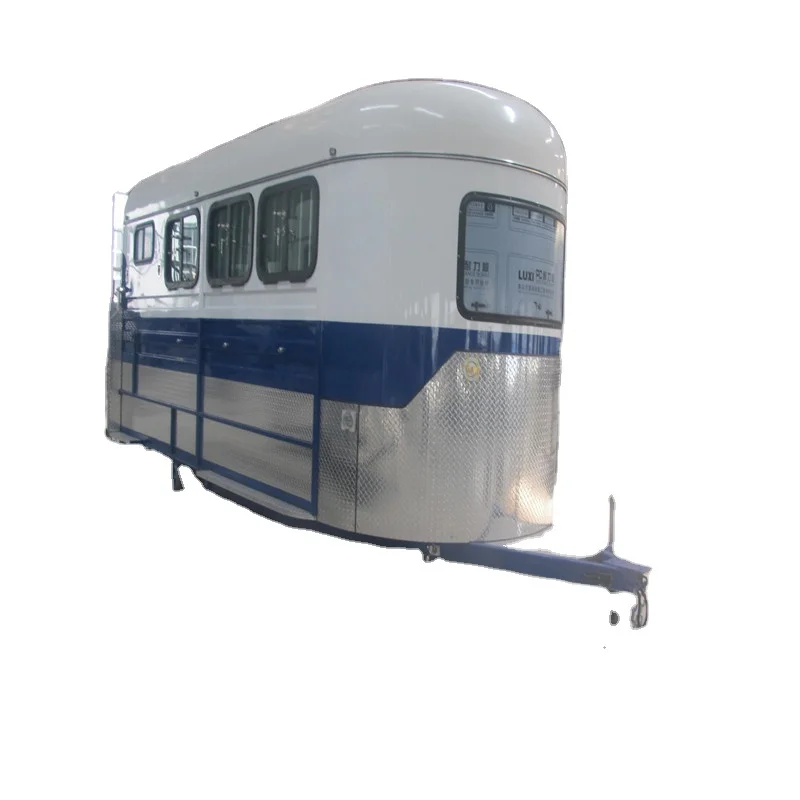

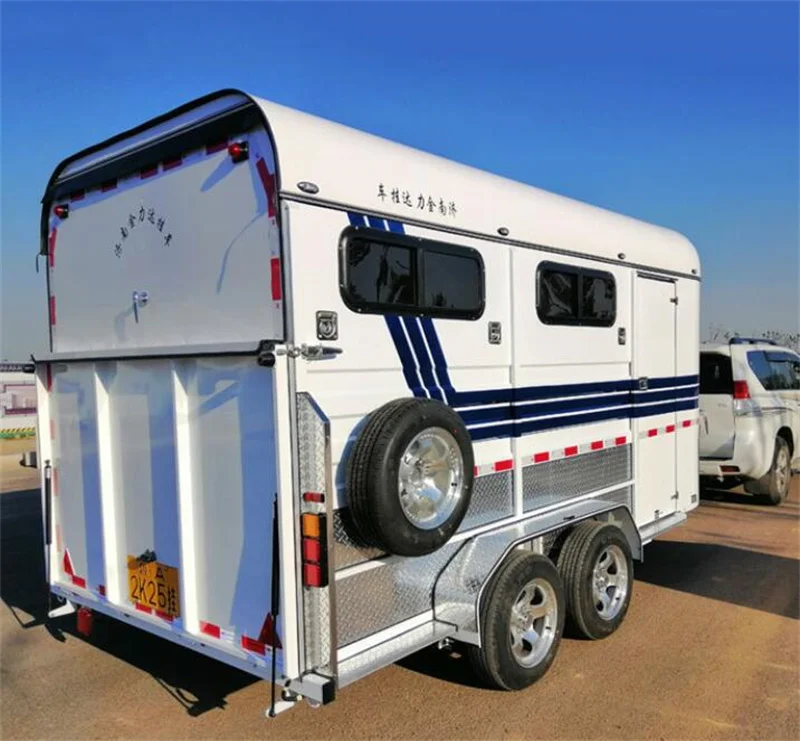

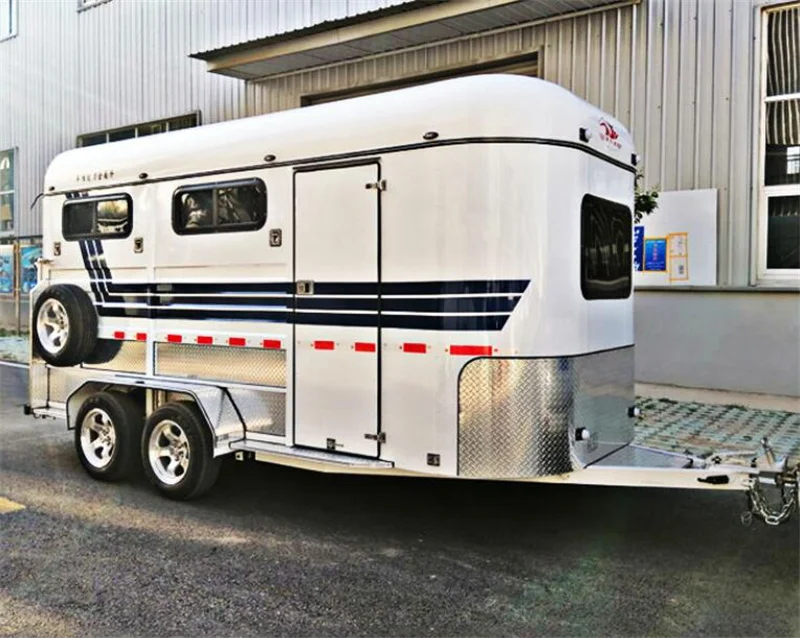

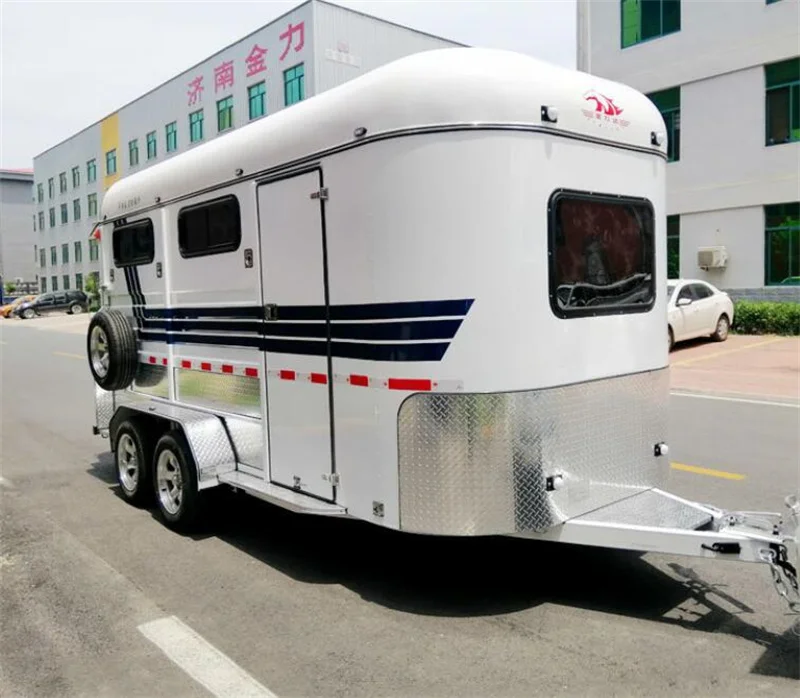

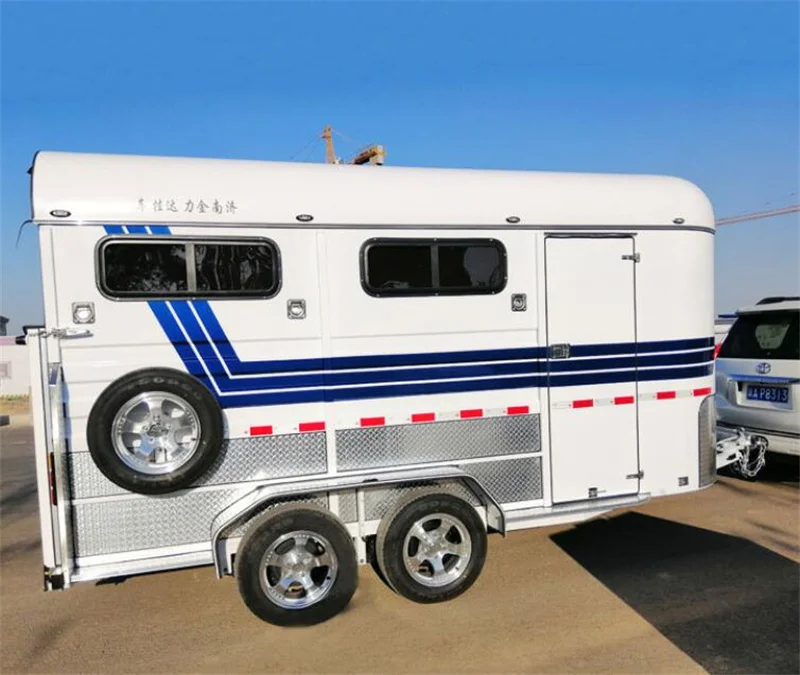

The pictures of the 3 horse trailer with angle load

MODEL :3HAL-D

1. TRAILER MATERIALS
1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)
1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)
1.3 BODY PANELgalvanized(1.2mm)
1.4 ROOF special molded FRP 5475*1890*450mm
1.5 NUTS & AMP ;BOLTS stainless steel
2. WHEELS & TYPES
2.1 WHEEL RIM 15′ Iron rims
2.2 TYPES 195R15C
2.3 SPARE WHEEL one
3.AXLES & SUSPENSIONS
3.1 ALXES two special trailer axles
3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates
3.3BRAKE AYATEM 4 wheel electic brakes with break – away systems
4. WINDOWS & DOORS
4.1 FRONT WINDOW 1220*610
4.2 SIDE WINDOWS 3 pop-up rectangle windows ,3 sliding rectangular windows
4.3 ENTS three sash casement vent
4.4 SIZE OF SIDE DOOR 1755*615
4.5 REAR UPPER DOOR 2020*1065
4.6 RAMP DOOR 2020*1210
4.7 REAR UPPER &RAMP DOOR STRUT high -intensity anti-rust strut
4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges
5. DRAWBAR
5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium
5.2 DRAWBAR SAFETY CHAIN two
5.3 BRACING WHEEL one
6. LIGHTS &RETRO REFLECTORS
6.1 TRAILER PLUGS square 7 wick plug
6.2 SIDE LAMPS 6
6.3 REAR LAMPS LED group
6.4 REAR LAMPS ATAND aluminium
6.5 RETRO REFLECTIONS 6
7. MUDGUARD
7.1 MUDGUARD TYPE compact mudguard
7.2 mudguard checker plate 1.2mm aluminium in the front of mudguard
7.3 pedal &aluminium step 1.2mm aluminium
8. INTERIOR &EXTERIOR
8.1 A KITCHEN with a cupboard and all appliance from yourself
8.2 horse PROTECTION frame full padded
8.3 horse ring six
8.4 rubber matting for ramp door 10mm rubber matting
8.5 BUBBER MATTING FOR FLOOR 10mm rubber matting
8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting
8.7 WOOD BOARD FOR FLOOR & AMP ;RAMP DOOR 18mm hardwood plywood
8.8 RUG RACK side
8.9 SADDLE RACK in saddle box
8.10 SADDLE BOX 1500mm height for 3 saddles
8.11 PAINTING single or customized
9. DIMENSIONS
9.1 OVERALL DIMENSIONS (L*W*H:mm)6325*2280*2590
9.2 BODY DIMENSION(L*W*H:mm)5475*1980*2230
9.3 MAXIMUM INTERNAL DEMENSIONS :5450*1930*2155
